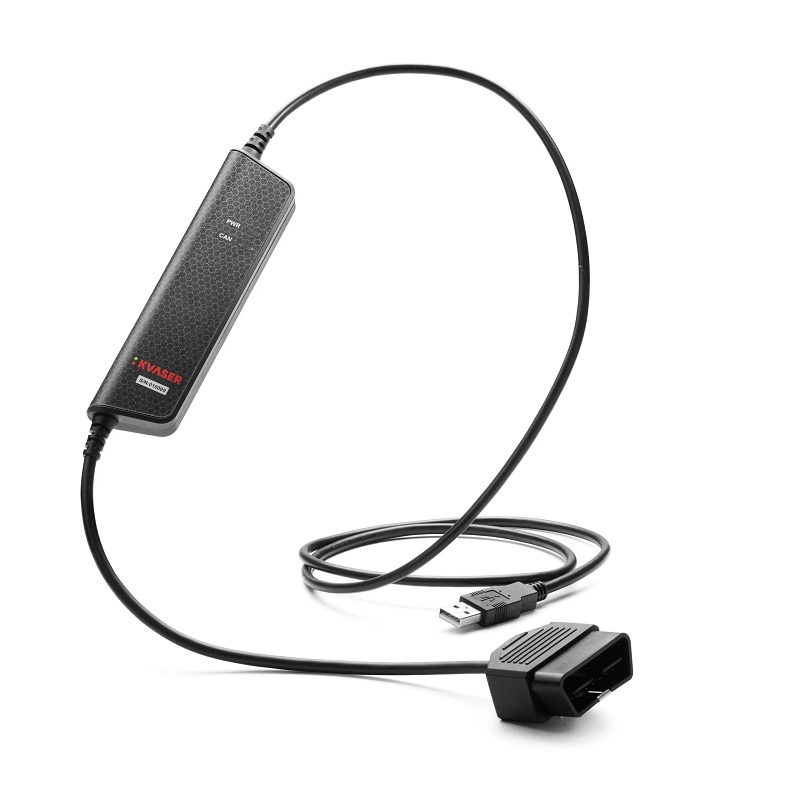

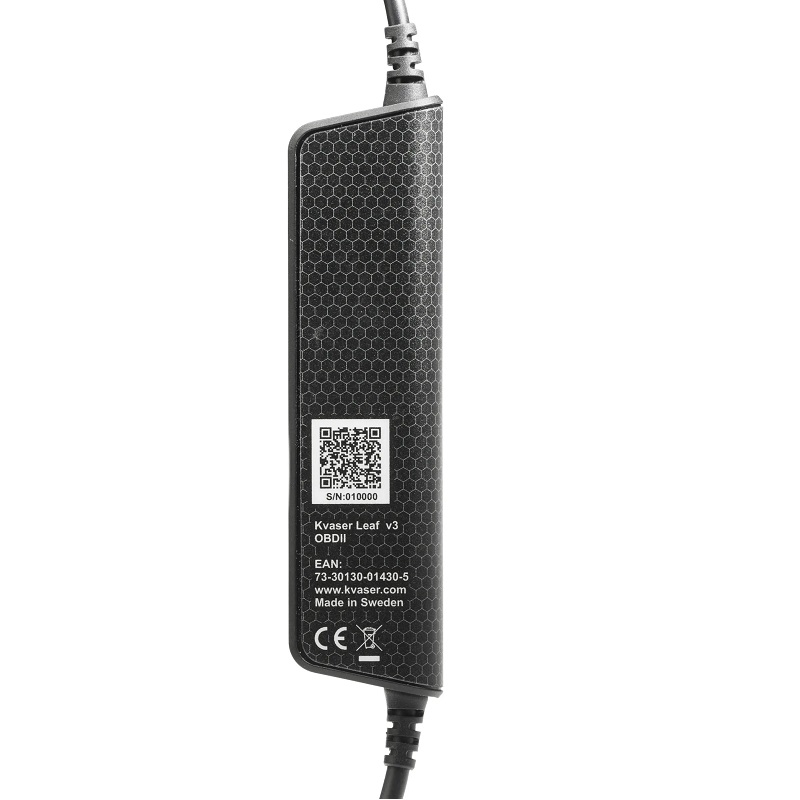

Kvaser Leaf v3 OBD II
Part No.: MPKV-01430-5
It provides efficient and reliable vehicle diagnostic data access through USB and OBD II connectors, suitable for various development and repair needs.
產品介紹
Description
The Kvaser U100P-X2 is a robust, single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation that squarely addresses the needs of the evolving automotive development market. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this is the first in a new range of interfaces that is also suited to rugged applications in marine, industrial, heavy duty vehicle and heavy industries.

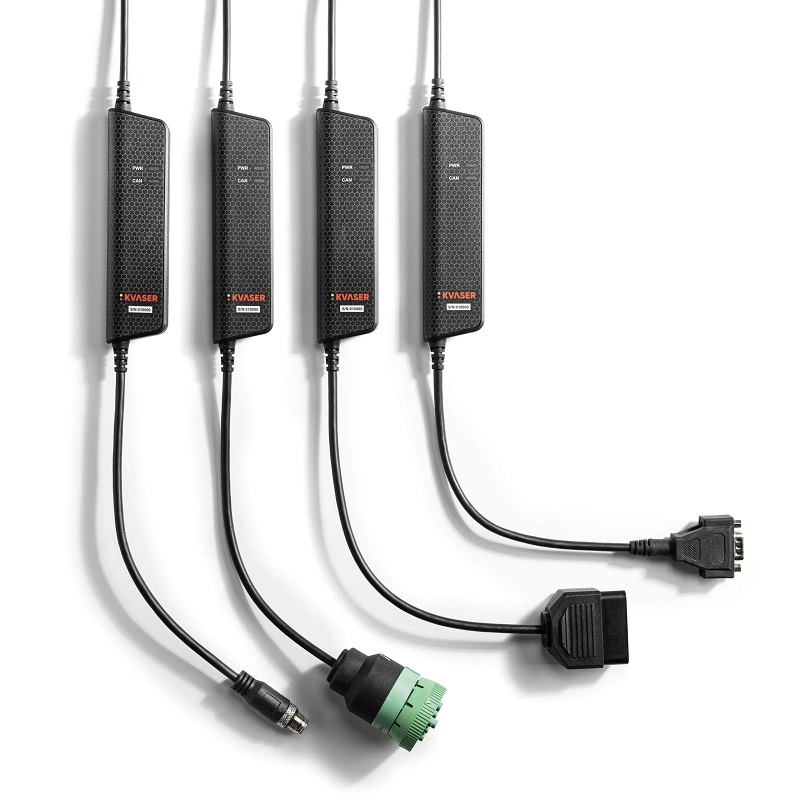

The Kvaser U100P is also available with 9-pin D-SUB, J1939 or OBD-II CAN connectors.
Major features
- USB 2.0 CAN interface.
- Powered through the USB Type A-connector.
- Compact 16-pin OBD II connector with extra strong strain relief.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- 20 000 msg/s, each timestamped with a resolution of 50 μs.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Support for SocketCAN.
- Supports simultaneous usage of multiple Kvaser interfaces.
Technical Specification
| Bitrate (kbps) | 20 - 1000 kbps |
|---|---|
| CAN FD Bitrate | Up to 8 Mbit/s |
| Categories | Interfaces, Hardware, CAN |
| Certificates | CE, FCC |
| Channels | 1 |
| Connectors | OBD-II / J1939 |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Galvanic Isolation | Yes |
| Silent Mode | Yes |
| Height | 17 mm |
| Interfaces | USB |
| Length | 165 mm |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Temp range | -20 °C to 70 °C |
| Timestamp Resolution (µs) | 50 µs |
| Weight | 130 g |
