Description

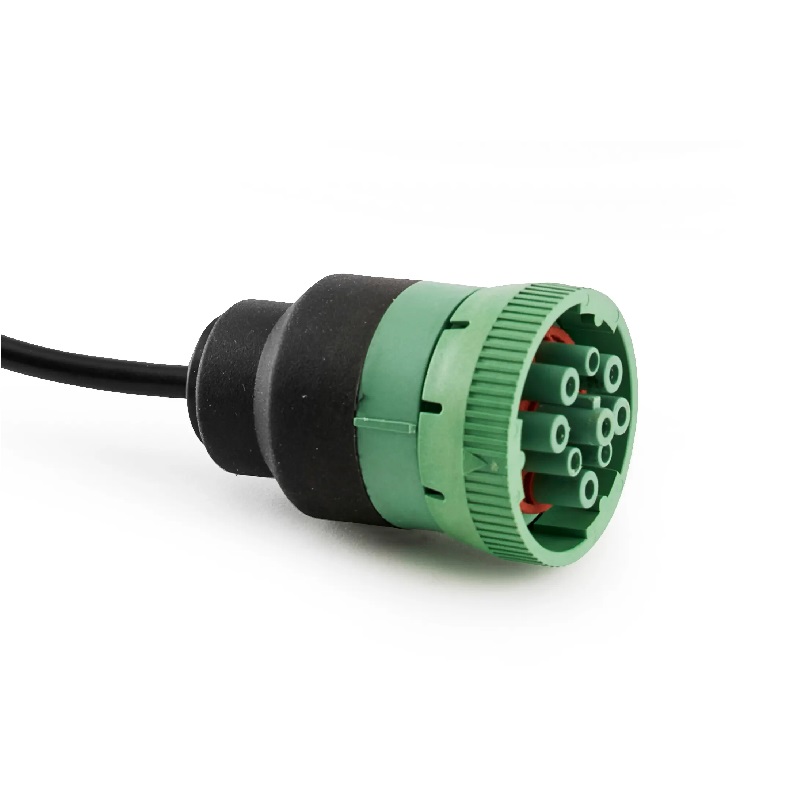

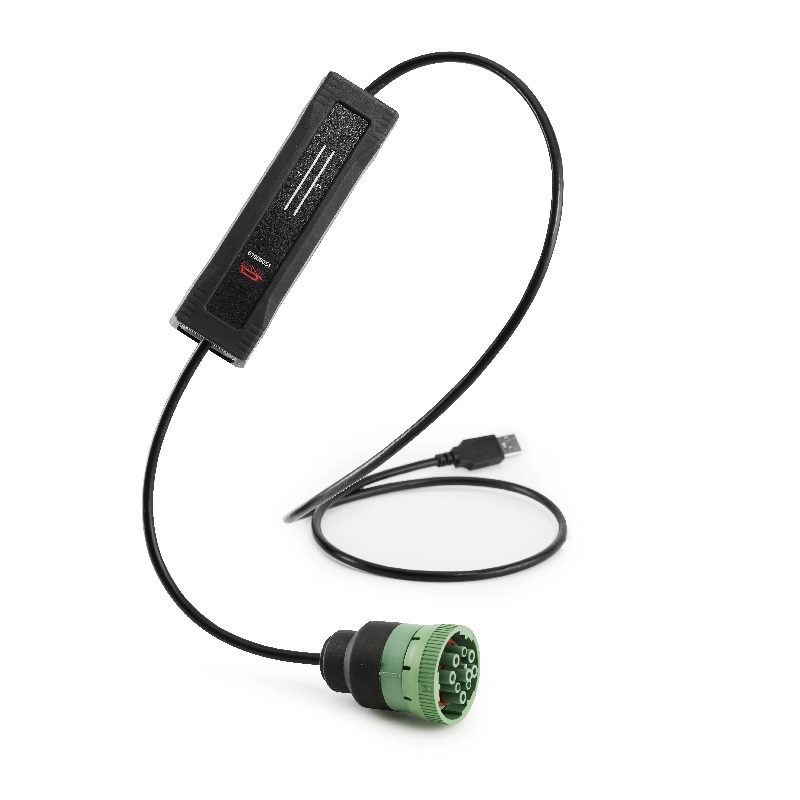

The Kvaser U100-X1 is a robust, galvanically-reinforced and single-channel CAN/CAN FD to USB interface with a 9-pin J1939-13 Type II CAN connector.

Signal and power isolated, the Kvaser U100 offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that meets the needs of CAN system developers through to service technicians.

With an intelligent LED that displays bus loads and error frames, an industry-leading IP67 rating and an innovative connector system, the U100 has numerous stand-out features. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this suits rugged and higher voltage applications in marine, industrial, construction, heavy-duty, agriculture and automotive, including electric vehicle markets.

The Kvaser U100 is also available with 9-pin D-SUB, M12 or OBD-II CAN connectors.


Major Features

• USB CAN interface.
• Powered through the USB connector.
• Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Lightweight robust housing made of glass fibre reinforced polyamide overmolded with TPE.
• Intuitive LED UI.
• Reinforced Galvanic Isolation, 5000VAC rms applied for 60 seconds.
• Industrial grade temperature range, -40 to +85 °C.
• 20 000 msg/s, each timestamped with a resolution of 100 μs.
• Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
• Support for SocketCAN.
• Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
• IP67 rated housing.
