Description

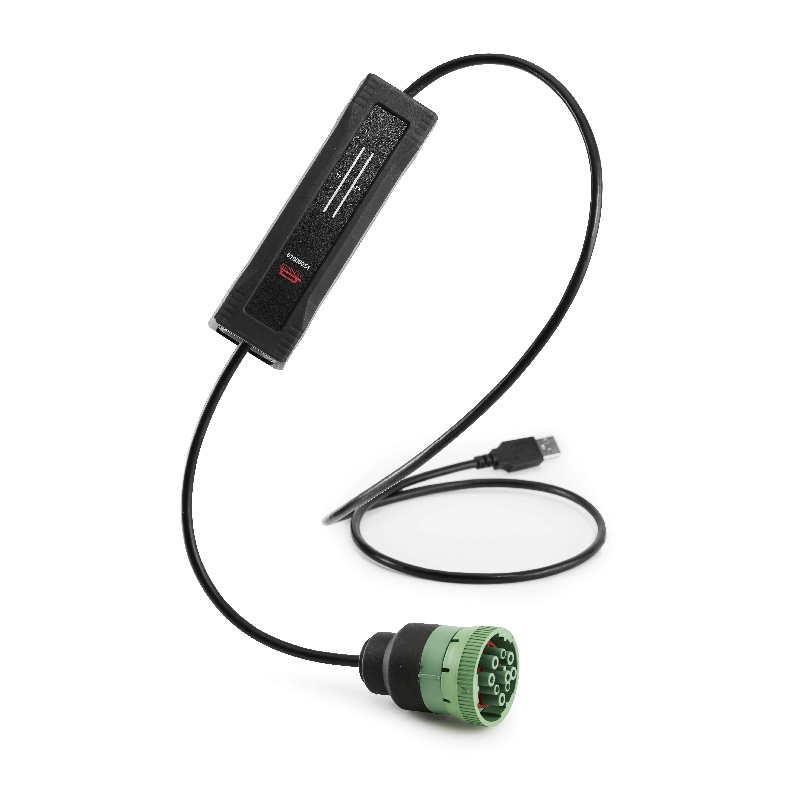

The Kvaser U100P-X1 is a robust, single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation that squarely addresses the needs of the evolving automotive development market. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this is the first in a new range of interfaces that is also suited to rugged applications in marine, industrial, heavy duty vehicle and heavy industries.

The Kvaser U100P is also available with 9-pin D-SUB, M12 or OBD-II CAN connectors.

Major features

• USB CAN interface.
• Powered through the USB connector.
• Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Supports silent mode for analysis tools – listen to the bus without interfering.
• Lightweight robust housing made of glass fibre reinforced polyamide overmolded with TPE.
• Intuitive LED UI.
• Reinforced Galvanic Isolation, 5000VAC rms applied for 60 seconds.
• Industrial grade temperature range, -40 to +85 °C.
• 20 000 msg/s, each timestamped with a resolution of 1 μs.
• Kvaser MagiSync – automatic time synchronization.
• Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
• Support for SocketCAN.
• Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
• IP67 rated housing.
