Description

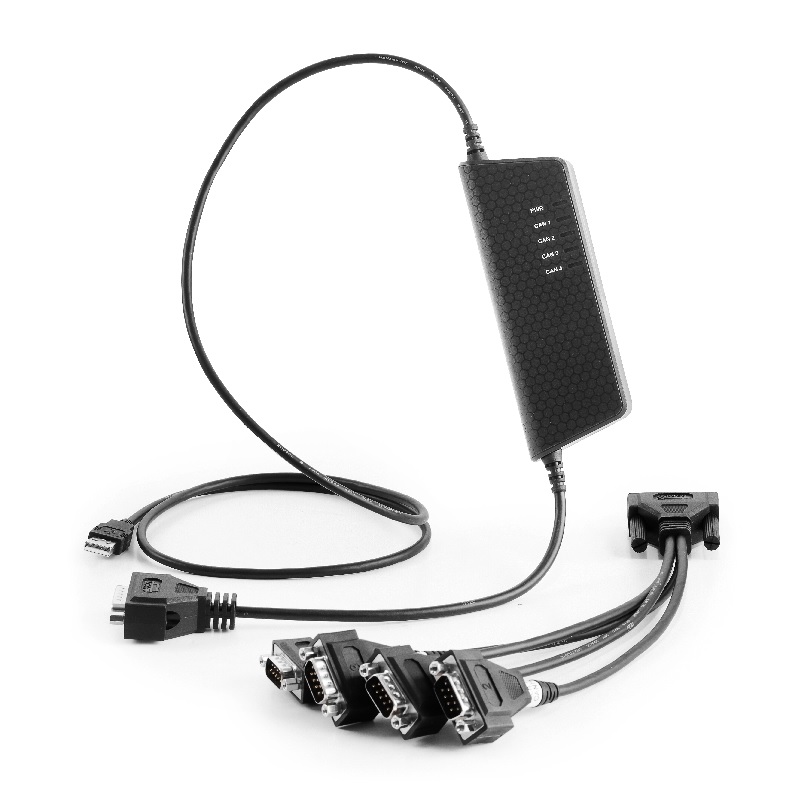

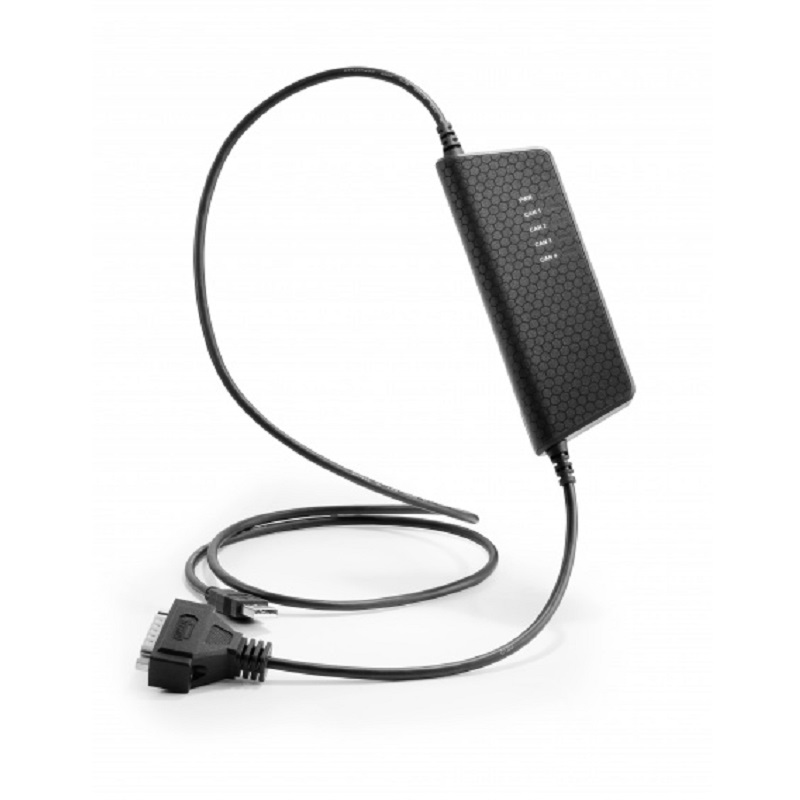

The Kvaser USBcan Pro 4xHS USB to quad channel CAN interface is the Pro version of the Kvaser USBcan Light 4xHS (00831-1), a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer.


Major Features

• Multi-channel USB CAN interface with Kvaser t programmability.
• 20 000 msg/s per channel, each timestamped with a resolution of 1 μs.
• Kvaser MagiSync™ – automatic time synchronization.
• Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Supports silent mode for analysis tools – listen to the bus without interfering.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Industrial grade temperature range, −40 oC to +85 oC.
• Galvanic isolation.
• Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
• Simultaneous operation of multiple devices.
• Power is taken from the USB bus.
• Includes a 4-channel breakout cable.
