CANedge1

Part No.: MPCSS-CANedge1
2x CAN Bus Data Logger (SD + RTC)

產品介紹

Description

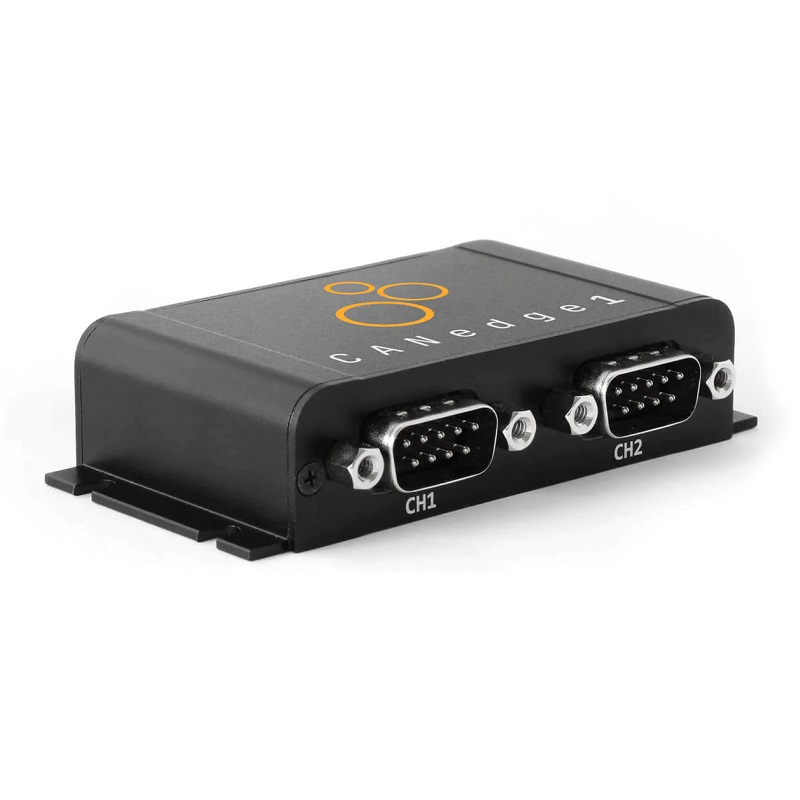

The plug & play 2x CAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 8 GB industrial SD card.

It's extremely easy-to-use: Simply power the device via your CAN bus connector to start logging raw CAN data. Extract the data and process it using 100% free open source software/API tools - incl. J1939/OBD2 DBC conversion & graphical plots.

The CANedge1 is ideal for monitoring CAN bus systems over long periods - e.g. for legal purposes, vehicle development, diagnostics, maintenance or research.



Specification

General Functionality Standalone CAN bus data logger with SD card and 2xCAN/LIN channels (incl. CAN FD)
Firmware Supports free firmware updates for adding features
Configuration Configuration files based on the popular open source JSON schema concept
Software
  • Free open source editor tool for easy device configuration (offline/online version available)
  • Free open source asammdf software & API for editing, DBC converting & plotting MDF4 data
  • Free open source C++ MF4 converters - drag & drop log files to convert into e.g. CSV, ASC, PCAP
  • Free open source data processing Python API - e.g. for use in setting up browser dashboards
Safety
  • CE, FCC, IC and RoHS certified (see the manual)
  • Tested for voltage transients (emissions/immunity), ISO 7637-2:2011, by TUV SUD (see the manual)
Warranty 1-year warranty
Support Free, fast & high quality support
Origin Denmark
CAN-Bus Channels 2 x CAN/CAN FD channels
Standard ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 5 Mbit/s)
Protocols Log raw data from CAN based protocols (J1939/FMS, CANopen, NMEA 2000, OBD2, CAN FD, UDS, ...)
Identifiers Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Bit-Rate Auto-Detect Bit rate can be auto-detected or set manually
Retransmission Configurable retransmission of frames that have lost arbitration or been disturbed by errors
Transceiver Protection
  • ±16 kV HBM ESD, ±15 kV IEC ESD, ±70 V bus fault, short circuit
  • Common mode input voltage: ±30 V
  • TXD dominant timeout (prevents network blocking in the event of a failure)
LIN Bus Channels 2 x LIN channels
Publisher/Subscriber Each LIN channel can be configured as a LIN subscriber/publisher with support for LIN data transmission
Custom length Support for custom frame lengths
Standard Compliant with LIN 2.0 up to 20 Kbit/s (support for Classic & Enhanced checksum format)
Transceiver Protection
  • ±8 kV HBM ESD, ±1.5 kV CDM, ±58 V bus fault
  • TXD dominant timeout (prevents network blocking in the event of a failure)
Supply SD Card 8 GB extractable Class 10 industrial micro SD (SDHC) included (optional 32GB) - read at 80 MB/s
Parallel CAN/LIN Record data from up to 2 x CAN channels + 2 x LIN channels, simultaneously
Real-Time Clock
  • Yes - CAN frames are date & timestamped with 50 microsecond resolution (battery backup)
  • The RTC can be configured to match local time zones (default: UTC)
Log File Format Log data in industry standard binary MF4 (easily convert to e.g. CSV, ASC, pandas, MATLAB, ...)
Data Compression Configurable embedded log file zipping (~50-80% size reduction)
Silent Mode Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission)
Filters 128/64 regular/extended ID filters per channel (range, mask, acceptance, rejection, prescaling)
Transmit Transmit lists of CAN frames per channel (single-shot/periodic) - e.g. for OBD2 requests
CAN Error Frames Support for logging CAN error frames (bit-stuffing, form, CRC, bit, acknowledgement)
LIN Error Frames Support for logging LIN error frames (checksum, receive, synchronization, transmission)
Remote Frames (RTR) Support for logging/transmission of remote CAN frames (RTR)
Cyclic Logging Optional cyclic logging mode (oldest log file is deleted when SD card is full)
Advanced Triggers Control signal lets you start/stop logging based on custom CAN IDs & data thresholds
CAN Heartbeat Optionally transmit heartbeat CAN frame with device status, storage used & RTC time
File Split Configurable log file split size (by size: 1-512 MB and/or by time period: 0-86400s)
Power Safe 100% power safe data logging - no file corruption when disconnected
Unique Device ID Each device has a globally unique ID ensuring unique log file naming
Data Encryption Log files can be encrypted at rest on the SD card for security/GDPR/CCPA purposes
Electrical Input Supply +7V to +32V DC via the Channel 1 DB9 (e.g. via CAN connector power pin)
Power Consumption Extremely low (~1 W) - no risk of battery drainage
Protection
  • Reverse voltage protection on CAN-bus supply
  • Transient voltage event protection on supply lines
Mechanical Enclosure & Weight Compact aluminium enclosure: 52.5 x 81.4 x 24.5 mm (L x W x H), 100 grams
Connector 2 x Standard D-sub 9 (DB9) connectors (optional OBD2/J1939/... adapters)
Pin-Out See the product manual for the DB9 connector pin-outs
Configurable Power Out Channel 2 can be configured to supply 5V to 1-3 external modules
LEDs Logger status via 4 external LEDs: Power, CH1, CH2, Memory
Temperature Operating temperature (parts): -25degC to +70degC
IP Rating IP Rating 40

Options


SD Card
  • 8GB SD card
  • 32GB SD card
Select adapter cable
  • OBD2 adapter
  • J1939 adapter
  • Generic adapter
  • M12 5-pin adapter
  • CAT adapter
  • CANCrocodile CH1 adapter
  • CANCrocodile CH2 adapter
  • J1939-DB9/DB9 (pin H+J)
  • J1939-DB9/DB9 (pin F+G)
  • OBD2/J1939-DB9 / DB9
Select mounting
  • 3M velcro strips x 4
  • Mounting bracket
