Description

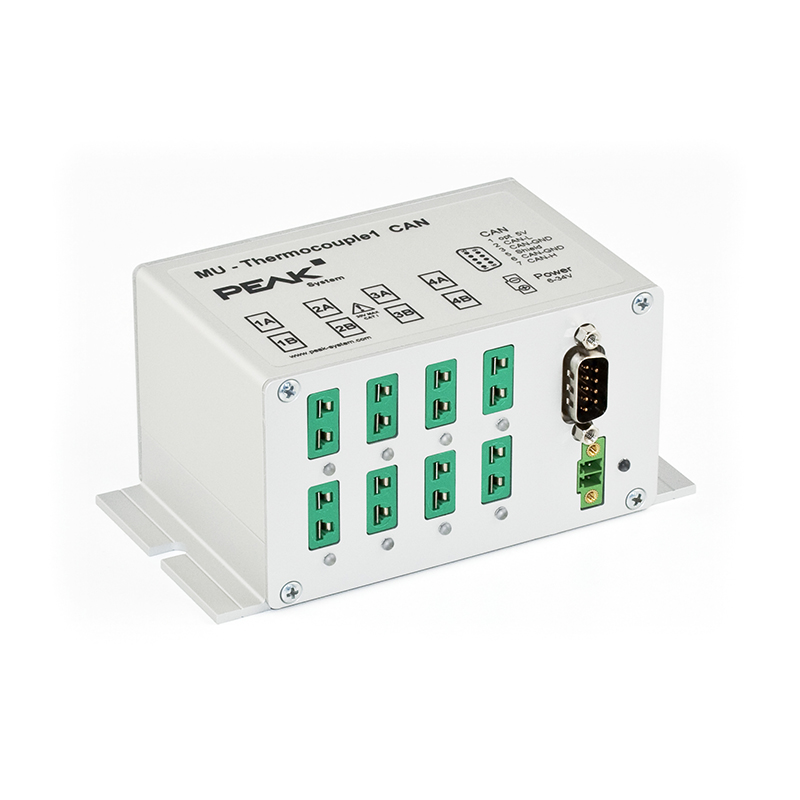

The Thermocouple measuring unit offers connections for 8 thermoelements for different temperature ranges (J, K, T).

Measurement data can be preprocessed and transmitted via CAN bus using a central microcontroller. Configuration work involves using Windows^® software on a computer connected to the same CAN bus.


Technical Specifications

• 8 Mini sockets for thermocouple types J, K, and T (depending on the assembly of measuring modules at delivery)
• 4 galvanically isolated measuring modules, each with 2 thermocouple sockets of the same type
• Measuring ranges:
  • J: -210 to +1121 °C
  • K: -200 to +1370 °C
  • T: -200 to +400 °C
• Measurement accuracy: 0.2 %
• Accuracy of the reference sensors: typically ±0.5 K, max. ±1.0 K at +25 °C ambient temperature
• Resolution for temperature data at CAN communication: 1/16 °C
• High-speed CAN connection (ISO 11898-2) for data transfer and configuring
  • Bit rates from 40 kbit/s up to 1 Mbit/s
  • Galvanic isolation up to 500 V
  • NXP TJA1040 CAN transceiver
  • Complies with CAN specifications 2.0 A/B
• Basic configuration with the Windows^® software Thermocouple Configuration
• Advanced configuration with the Windows^® software PPCAN-Editor 2
• Preprocessing of readings possible with integrated microcontroller
• Aluminum casing with flange. DIN rail fixing option available on request
• Voltage supply from 6 to 34 V
• Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)

Product Includes...

1. MU-Thermocouple1 CAN in aluminum casing
2. Mating connector for voltage supply
3. Configuration software Thermocouple Configuration for Windows^® 10, 8.1, 7 (32/64-bit)
4. Configuration software PPCAN-Editor 2 for Windows^®
5. Manual in PDF format

Note:
1. Prices and Specifications are subject to change without notice
2. Requirement: The configuration requires a PEAK CAN interface.
