Description

The Multiple Input Output module (MIO) is a universal, modular controller for use both in the industrial and automotive fields.

The module has two CAN interfaces as well as multiple analog and digital inputs and outputs. Incoming signals can be processed by the microcontroller and then forwarded to the CAN interfaces or output channels. For this purpose, the behavior of the PCAN-MIO module can be freely configured using a comprehensive Windows® software. A large number of function blocks and other settings are available to help the user in creating such a configuration.

Pluggable CAN transceiver modules allow flexible adaptation of each CAN channel to the respective requirements. For example, Low-speed and Single-wire CAN transceivers are also available on request.

Technical Specifications

• 2 High-speed CAN channels (ISO 11898-2)
  • Comply with CAN specifications 2.0 A/B
  • CAN bit rates from 40 kbit/s up to 1 Mbit/s
  • NXP TJA1041 CAN transceiver with wake-up
  • Alternative pluggable transceiver modules on request
• CAN termination switchable
• Wake-up function using separate input or CAN bus
• 8 digital inputs with low-pass performance
• 8 digital outputs, 2 of these with PWM capability
• 6 analog inputs, measuring range unipolar 0 to 10 V, (resolution 10 bit, sample rate 1 kHz)
• 2 analog outputs (10 bit, 0 to 10 V)
• Suitable for use in the automotive field
• Detailed configuration with the software PPCAN-Editor 2 for Windows®
• Module can store up to 15 configurations
• CAN gateway between buses
• Individual function blocks for data linkage and data modification

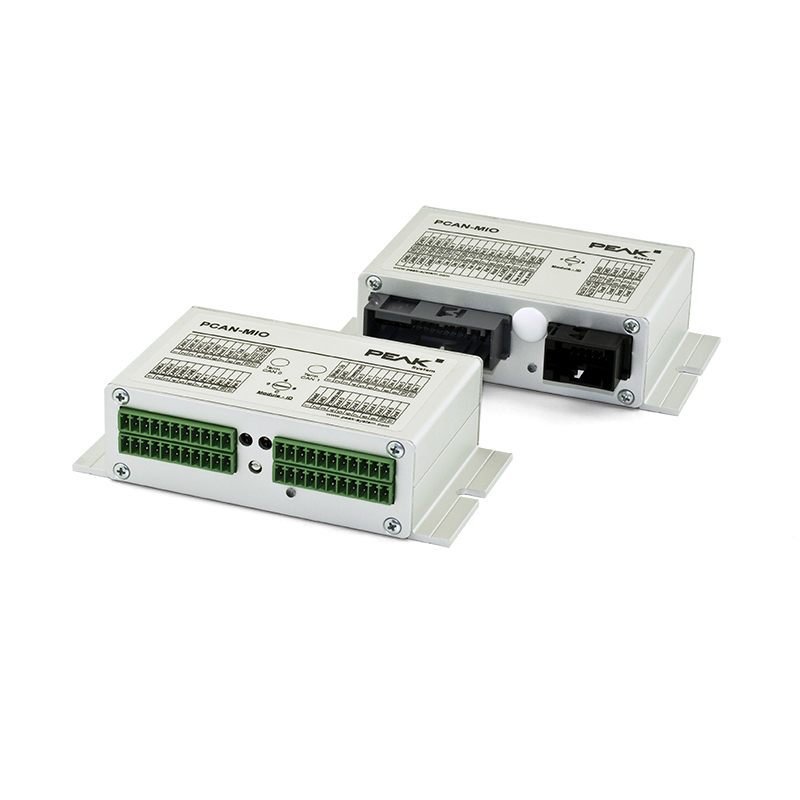

• Available with industrial connectors (Phoenix spring terminal connectors) or automotive connectors (Tyco connectors)
• Aluminum casing with flange. DIN rail fixing option available on request
• 9 to 27 V voltage supply, overvoltage and reverse polarity protection
• Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

Product Includes...

Scope of supply PCAN-MIO

• PCAN-MIO in aluminum casing including mating connectors
• Configuration software PPCAN-Editor 2 for Windows^®
• Manual in PDF format

Scope of supply PCAN-MIO Set

• PCAN-MIO in aluminum casing including mating connectors
• CAN interface PCAN-USB
• Configuration software PPCAN-Editor 2 for Windows^®
• Manual in PDF format

Note:
1. Prices and Specifications are subject to change without notice
2. Requirement: The configuration requires a PEAK CAN interface.
