!! End of Life - The Product will be Discontinued!!

The product is only available in smaller quantities. Unfortunately, larger quantities can no longer be produced. If you need larger quantities over a longer time, please use the long-term available I/O modules of the PCAN-MicroMod FD series for your new projects.

Description

The motherboards for the PCAN-MicroMod provide an application-oriented environment. Typical characteristics of this product group include a wide supply voltage range and the protective circuit for the inputs and outputs. CANopen^® firmware is available for all PCAN-MicroMod motherboards.

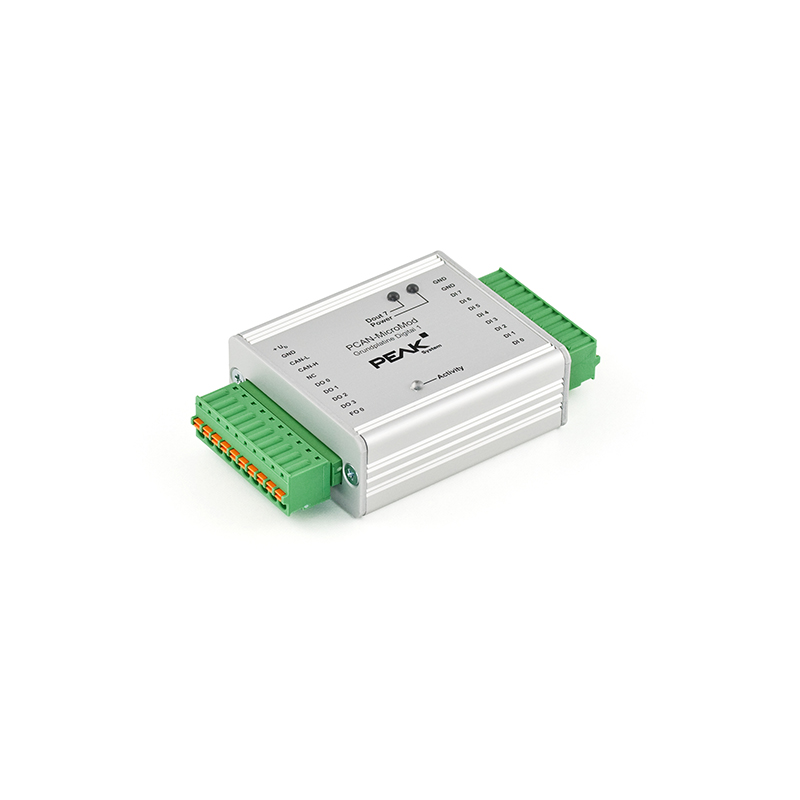

The Digital 1 & 2 motherboards serve general digital requirements.


Technical Specifications

• High-speed CAN connection (ISO 11898-2)
  • Bit rates from 10 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• Completely configurable using the Windows^® software PCAN-MicroMod Configuration
• Operating voltage 8 to 26 V
• Status LEDs for power supply and digital output
• Aluminum casing with spring terminal connectors. Optional DIN rail fixing available
• Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
• 8 digital inputs:
  • Pull-up or Pull-down circuit selectable in groups (3 groups)
  • Schmitt trigger behavior, inverting
  • Threshold High = 4.8 V, Low = 1.2 V
  • Low pass behaviour
  • Parallel connection of frequency inputs at 4 digital inputs for alternative use (e.g. on rapid state changes, counting)
• 5 digital outputs:
  • PCAN-MicroMod Digital 1: 4 Low-side switch, max. 45 V, 0.35 A
  • PCAN-MicroMod Digital 2: 4 High-side switch, max. 26 V, 1.1 A
  • 1 fast Low-side switch, max. 55 V, 0.75 A, max. 10 kHz („frequency output“)
  • Short-circuit protection

Product Includes...

1. PCAN-MicroMod
2. PCAN-MicroMod motherboard in casing including mating connectors
3. PCAN-MicroMod Configuration Software for Windows^®
4. Manual in PDF format

CANopen^® firmware is available for all PCAN-MicroMod motherboards.
