!! End of Life - The Product will be Discontinued !!

The product is expected to be available only until the end of 2024. If you need larger quantities over a longer time, please use the long-term available I/O modules of the PCAN-MicroMod FD series for your new projects.

Description

The motherboards for the PCAN-MicroMod provide an application-oriented environment. Typical characteristics of this product group include a wide supply voltage range and the protective circuit for the inputs and outputs. CANopen^® firmware is available for all PCAN-MicroMod motherboards.

The Mix 1 and Mix 2 motherboards combine general analog and digital requirements with temperature recording functions.

Technical Specifications

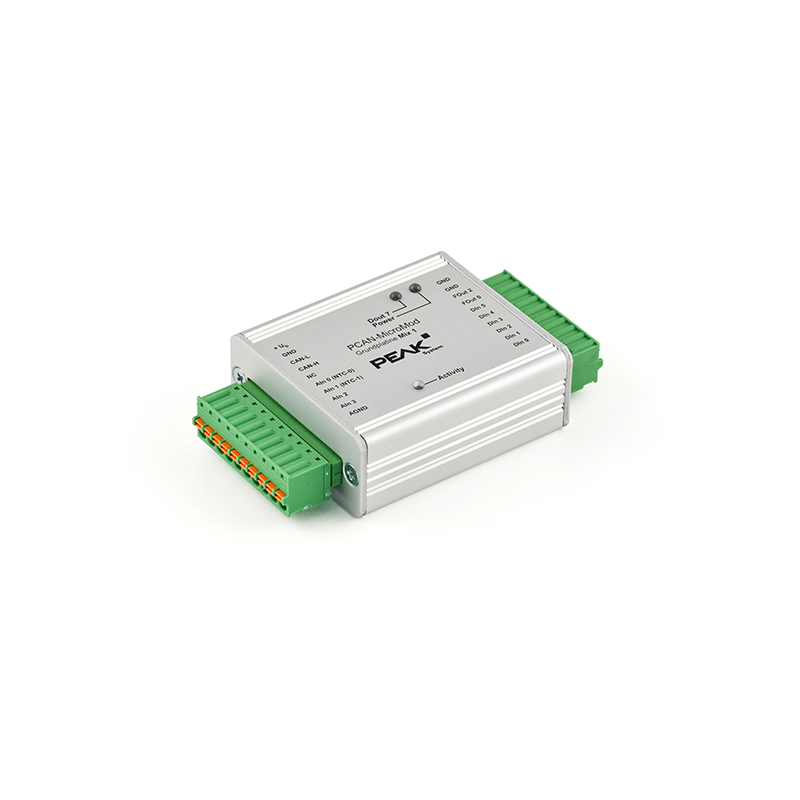

Specifications Mix 1

• High-speed CAN connection (ISO 11898-2)
  • Bit rates from 10 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• Completely configurable using the Windows^® software PCAN-MicroMod Configuration
• Operating voltage 8 to 26 V
• Status LEDs for power supply and digital output
• Aluminum casing with spring terminal connectors. Optional DIN rail fixing available
• Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
• 2 analog inputs:
  • Measuring range unipolar 0 to 5 V
  • Resolution 10 bit, sample rate 1 kHz
  • Measuring range extension optional
  • Pull-down circuit
  • Protection against under- and overvoltages
• 2 temperature inputs:
  • 2 connections for NTC resistors (type EC95F103W)
  • Measuring range 0 to 70 °C (32 to 158 °F)
• 6 digital inputs:
  • Pull-up or pull-down circuit selectable in groups (3 groups)
  • Schmitt trigger behavior, inverting
  • Threshold High = 4.8 V, Low = 1.2 V
  • Low-pass behavior
  • Parallel connection of frequency inputs at 4 digital inputs for alternative use (e.g. on rapid state changes, counting)
• 2 digital outputs/frequency outputs:
  • Fast Low-side switch, max. 55 V, 0.75 A
  • Short-circuit protection

Specifications Mix 2

• High-speed CAN connection (ISO 11898-2)
  • Bit rates from 10 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• Completely configurable using the Windows^® software PCAN-MicroMod Configuration
• Operating voltage 11 to 26 V
• Status LEDs for power supply and digital output
• Aluminum casing with spring terminal connectors. Optional DIN rail fixing available
• Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
• 3 analog inputs:
  • Measuring range unipolar 0 to 4.1 V
  • Resolution 10 bit, sample rate 1 kHz
  • Measuring range extension optional
  • Pull-down circuit
  • Low-pass behavior
  • Protection against under- and overvoltages
• 1 analog voltage output:
  • Voltage 0 to 10 V (based on 16-bit PWM)
  • Load ability 15 mA, short-circuit proof
• 1 analog current output:
  • Current intensity 0 to 20 mA (based on 16-bit PWM)
• 2 digital inputs:
  • Pull-up or pull-down circuit selectable for both together (1 group)
  • Schmitt trigger behavior, inverting
  • Threshold High = 4.8 V, Low = 1.2 V
  • Low-pass behavior
  • Parallel connection of a frequency input each for alternative use (e.g. on rapid state changes, counting)
• 1 digital output:
  • Fast Low-side switch, max. 55 V, 0.75 A
  • Short-circuit protection
• 2 temperature inputs:
  • 1 connection for a NTC resistor (type EC95F103W)
  • 1 connection for a platinum sensor PT1000
  • Measuring range 0 to 70 °C (32 to 158 °F)

Product Includes...

1. PCAN-MicroMod
2. PCAN-MicroMod motherboard in casing including mating connectors
3. PCAN-MicroMod Configuration Software for Windows^®
4. Manual in PDF format
   CANopen^® firmware is available for all PCAN-MicroMod motherboards.

Note:
1. Prices and Specifications are subject to change without notice
2. Requirement: The configuration requires a PEAK CAN interface.
