!!End of Life - The Product will be Discontinued!!

The product is expected to be available only until the end of 2024. If you need larger quantities over a longer time, please use the long-term available I/O modules of the PCAN-MicroMod FD series for your new projects.

Description

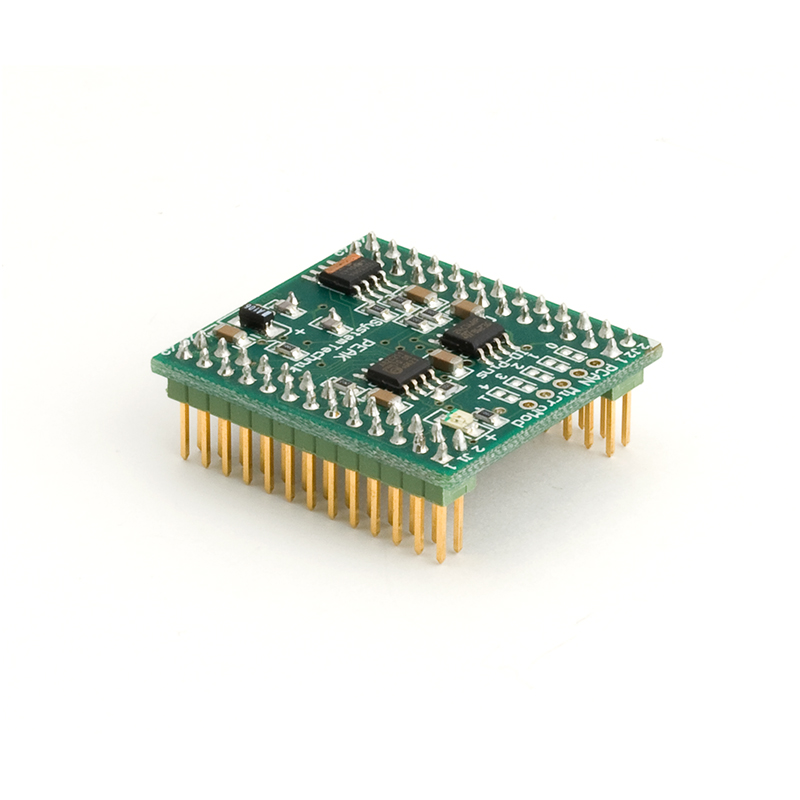

The plug-in module PCAN-MicroMod represents a straightforward possibility to provide electronic circuits with I/O functionality and a CAN connection. Configuring is done with a Windows program which sends the configuration data to the module via CAN. Several modules can be configured independently on a CAN bus.

With various PCAN-MicroMod motherboards, it can be used in device and plant engineering and in the motor vehicle industry. An optional evaluation board simplifies the enhancement and development of custom boards.

Technical Specifications

• High-speed CAN connection (ISO 11898-2)
  • Bit rates from 10 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• 8 analog inputs, measuring range unipolar 0 to 5 V (resolution 10 bit, sample rate 1 kHz)
• 8 digital inputs and 8 digital outputs
• PWM/frequency outputs (1 Hz to 10 kHz)
• Maximum of 32 MicroMods in one CAN network
• Dimensions: 32 x 35 mm
• Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

Product Includes...

1. PCAN-MicroMod
2. PCAN-MicroMod Configuration software for Windows
3. Manual in PDF format
