Description

On the PCAN-LIN module, the field buses and the power supply are connected together via a D-Sub plug. However, for some applications a separate access to the LIN components is necessary.

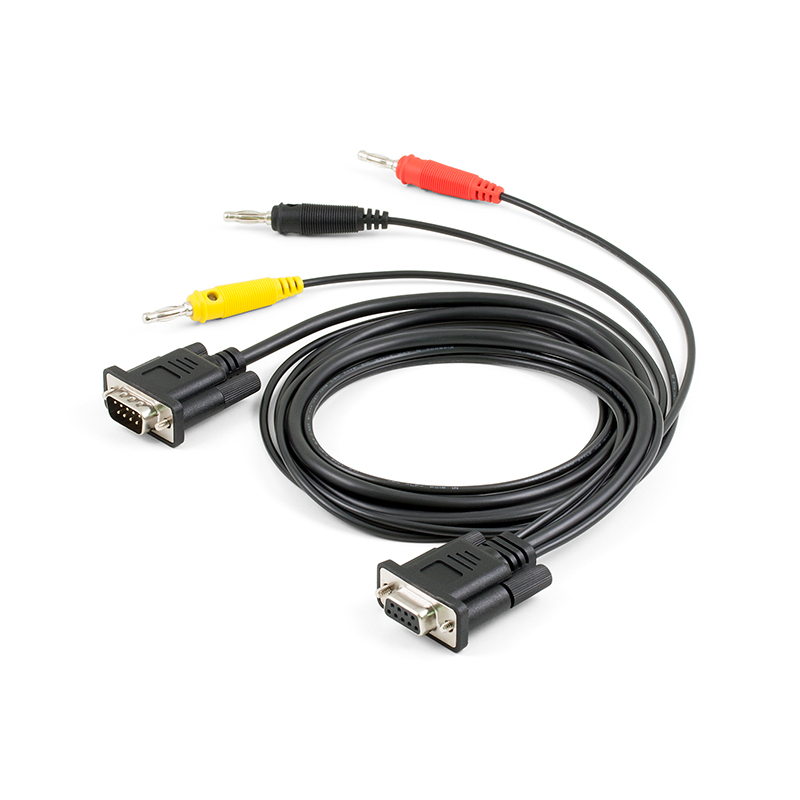

The LIN connection cable for PCAN-LIN allows the tapping of individual lines. The LIN and the supply lines are lead directly out to separate plugs and the CAN lines are forwarded to a D-Sub plug.

The connection cable can be used without problems for CAN FD buses.



Specifications

• Pre-configured cable set for PCAN-LIN
• Split-up of the lines from the CAN/LIN connector to:
  • CAN (D-Sub plug, 9-pin)
  • LIN (banana plug, 4 mm)
  • Power supply for LIN (banana plugs, 4 mm)
• Length about 1.00 m
• Without terminating resistor
• Suitable for the use in CAN FD buses

Product Includes...

1. LIN Connection Cable for PCAN-LIN.
