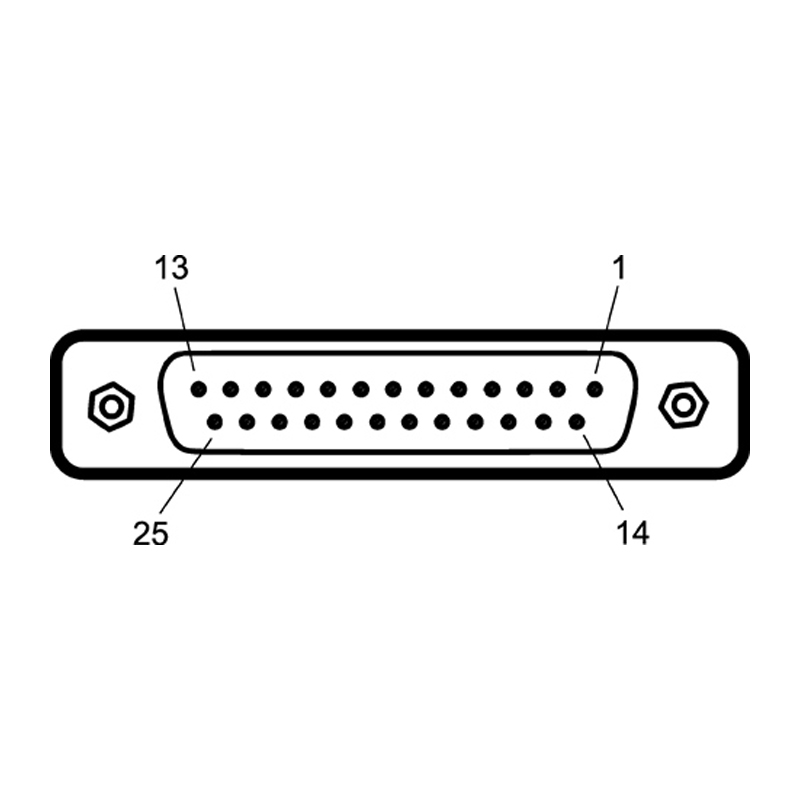

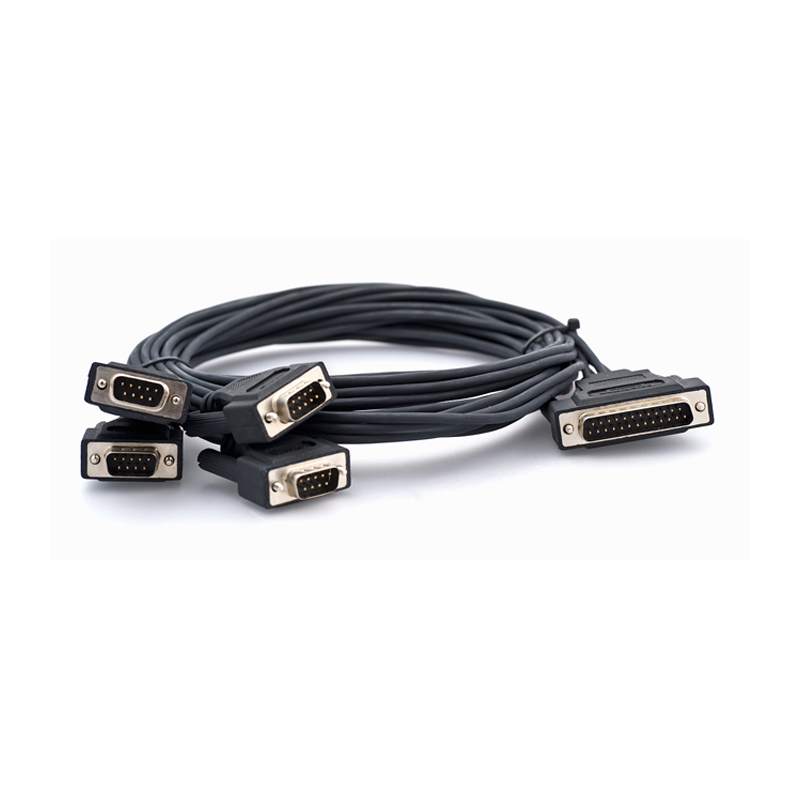

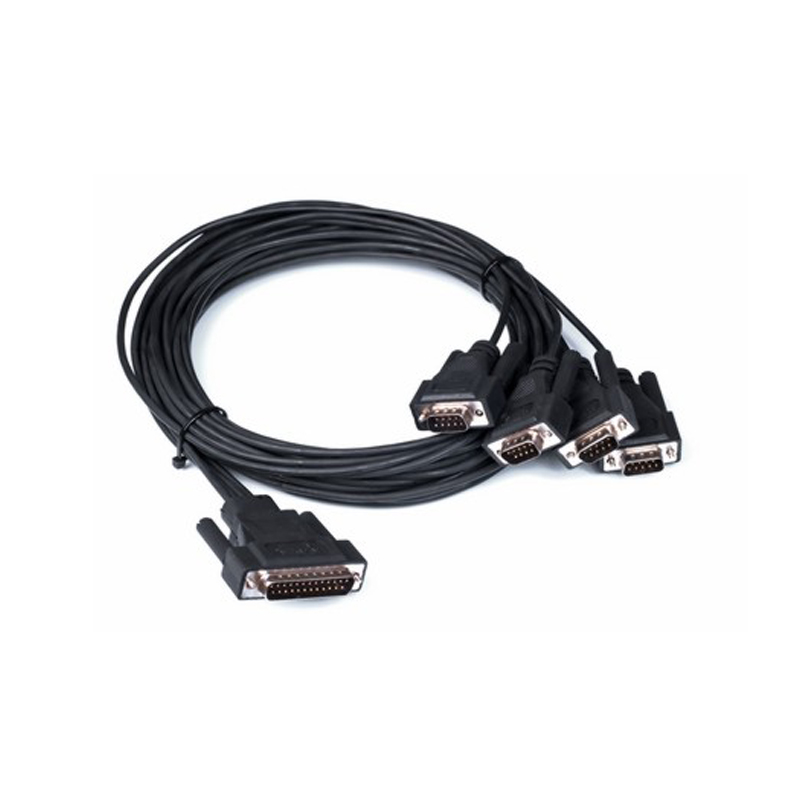

The Q-Cable is a 0.3m (approx. 0.98 ft) long adapter cable for the Kvaser PCIcanx 4xHS and Kvaser PCIcan 4xHS boards. A DSUB male connector connects to the PCIcan board, whilst four DSUB male connectors connect to the CANbus.
Channels | 4 |
---|---|
Material | Durable thermoplastic rubber |
Error Counters Reading | No |
Error Frame Generation | No |
Galvanic Isolation | No |
Silent Mode | No |
Temperature Range | -30 ~ 85 °C |
Certificates | CE, RoHS |
Length | 300 mm |
Weight | 200 g |
Interfaces | Cable |
OS | Win XP, Linux, Win 7, Win Vista, Win 10, Win 8 |
