Description

A compact, advanced wireless device that seamlessly bridges CAN networks, with easy setup, free pairing and flexible configuration.

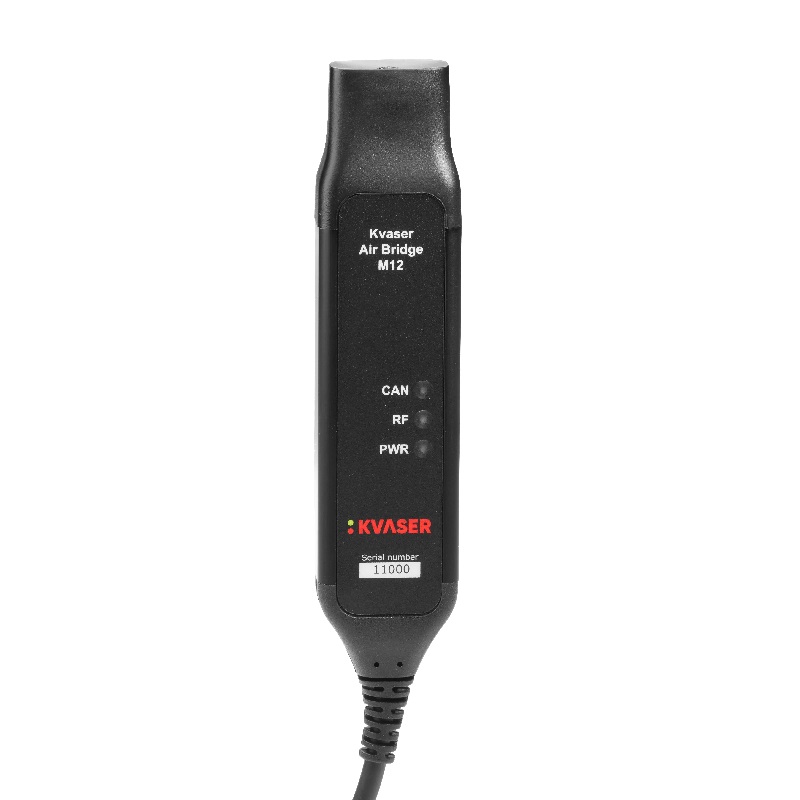

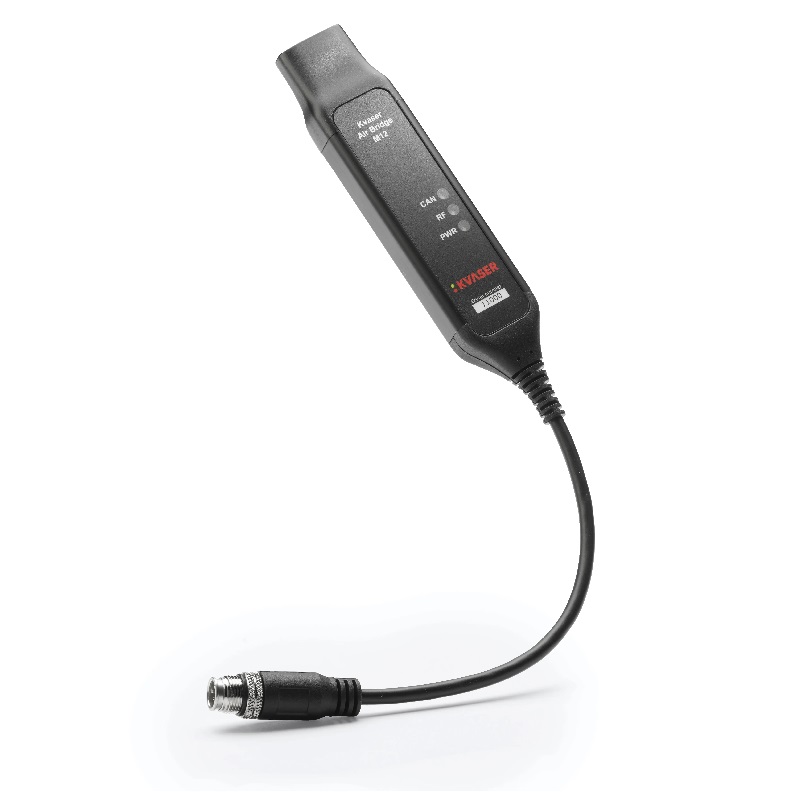

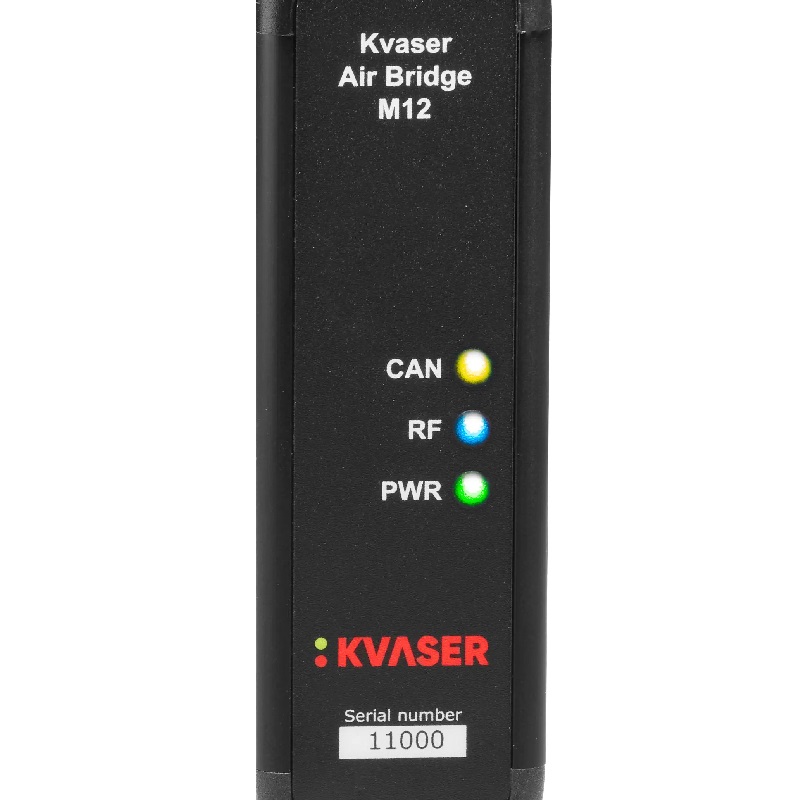

Kvaser Air Bridge M12 is a small, yet advanced, wireless CAN bridge that can be used to form a CAN system bridge, when paired with any other Kvaser Air Bridge M12 device and create connectivity between two or more CAN networks. This radio solution can be used to connect CAN based control systems and test equipment in scenarios and situations where it is desirable to replace cabling and related parts.

The Kvaser Air Bridge M12 is designed for ease of use, while retaining a certain flexibility for the user by means of configuration; choose between ’one to one’, or ’one to any’. With uniquely low and predictable latency compared to other wireless technologies, the Kvaser Air Bridge M12 is well-suited for control tasks in remote-control applications with systems that require rapid response. The Kvaser Air Bridge Utility CLI enables a user to commission Kvaser Air Bridge M12 devices in a simple and straight-forward fashion.

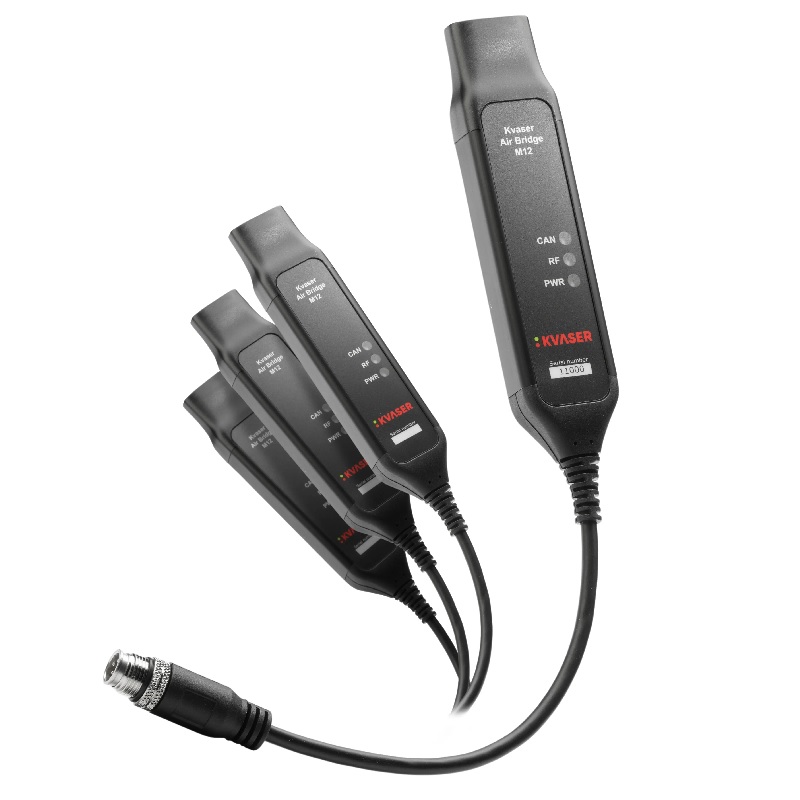

The Kvaser Air Bridge Utility CLI helps users commission a pair of Kvaser Air Bridge M12s, or more Kvaser Air Bridge M12 devices, depending on the operational needs of the system e.g. where one control station needs to connect to more than one remote apparatus.

Please note: To create one wireless CAN bridge using the Kvaser Air Bridge M12, it is necessary to purchase two devices. Each additional node requires a further Kvaser Air Bridge M12 unit.

Major features

• Forms a wireless CAN bridge between two Kvaser Air Bridge devices.
• Can be paired with any other Kvaser Air Bridge M12 device to form a point-to-point radio link.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Driver-free and only limited configuration required.
• Provides configuration flexibility to support a wide variety of application requirements.
• Pairing, configuration and link status via management protocol over the CAN bus.
• Active discovery feature that detects available Kvaser Air Bridge M12 devices for pairing.
• Proprietary wireless protocol for high robustness, very low latency and to enable link establishment and connection in an instant.
• Internal antenna design with polarization diversity.
• Automatic bit rate detection or user configured.
• Bit rate conversion between CAN bus systems with different bit rates.
• IP65-rated, dust- and water-resistant housing.
• IP67-rated M12 connector for cabling with extra dustand water-tightness, suitable for outdoor installation.
• Extended operating temperature range.
• Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation is handled by the user´s application.
