Kvaser U100-X3
Part No.: MPKV-01268-4
Robust, single-channel CAN/CAN FD OBD-II to USB interface
產品介紹
Description

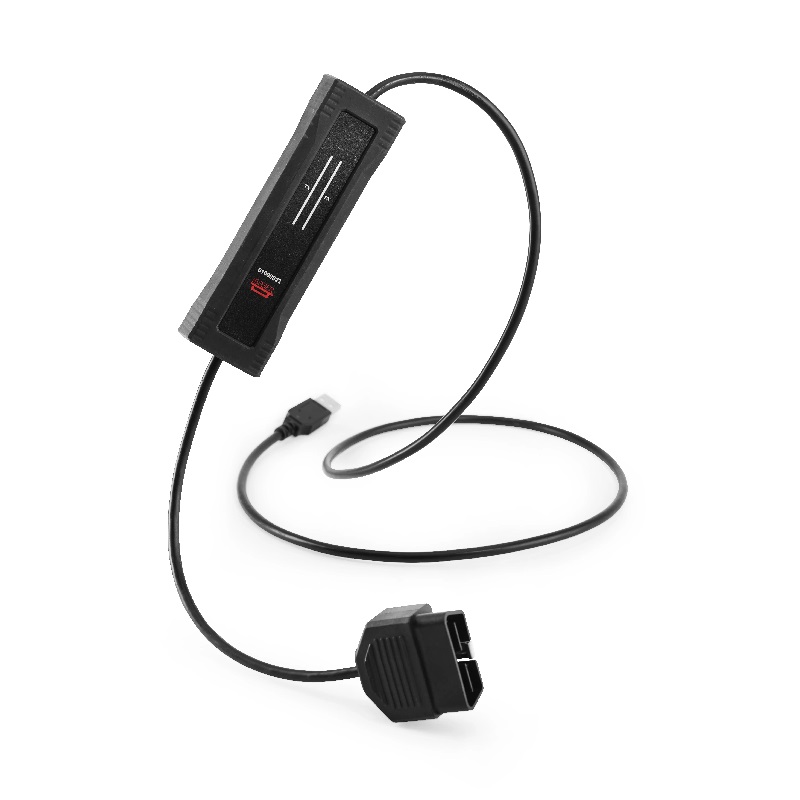

The Kvaser U100-X3 is a robust, galvanically-reinforced and single-channel CAN/CAN FD to USB interface with a 16-pin OBDII plug.
Signal and power isolated, the Kvaser U100 offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that meets the needs of CAN system developers through to service technicians.
With an intelligent LED that displays bus loads and error frames, an industry-leading IP67 rating and an innovative connector system, the U100 has numerous stand-out features. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this suits rugged and higher voltage applications in marine, industrial, construction, heavy-duty, agriculture and automotive, including electric vehicle markets.
The Kvaser U100 is also available with 9-pin D-SUB, J1939-13 Type II or M12 CAN connectors.
Major Features
- USB CAN interface.
- Powered through the USB connector.
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Lightweight robust housing made of glass fibre reinforced polyamide overmolded with TPE.
- Intuitive LED UI.
- Reinforced Galvanic Isolation, 5000VAC rms applied for 60 seconds.
- Industrial grade temperature range, -40 to +85 °C.
- 20 000 msg/s, each timestamped with a resolution of 100 μs.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Support for SocketCAN.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- IP67 rated housing.
Technical Specification
| Bitrate | 10 - 1000kbps |
|---|---|
| CAN FD Bitrate | Up to 8 Mbit/s |
| Categories | CABLES, Interfaces, Hardware, CAN |
| Certificates | CE, RoHS |
| Channels | 1 |

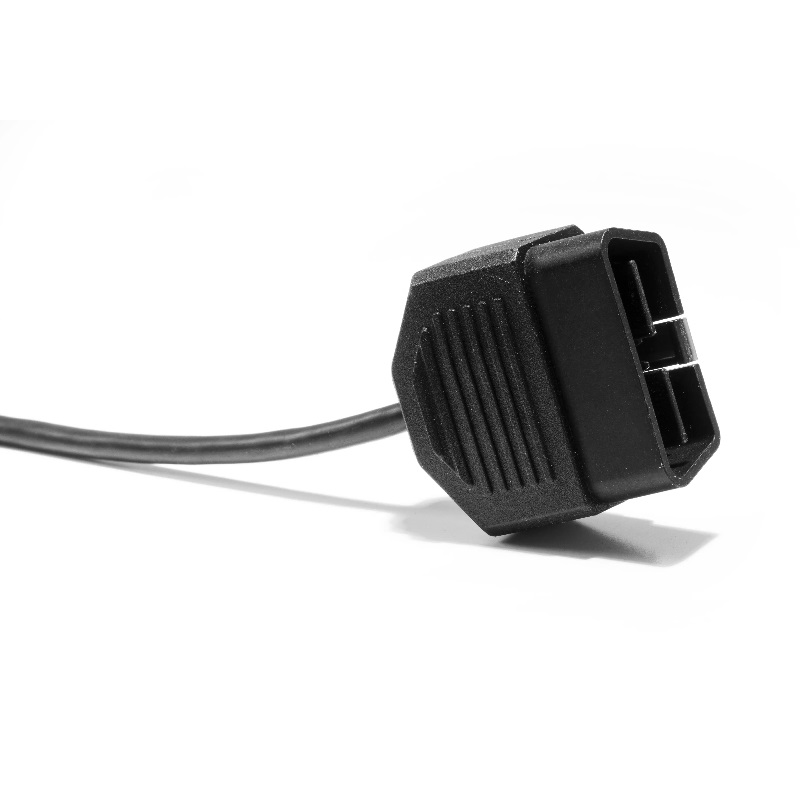

| Connectors | OBD-II /J1962 |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Galvanic Isolation | Yes |
| Height | 26 mm |
| Interfaces | USB |
| Length | 128 mm |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| OS | Linux, Win 7, Win 10, Win 8, Win 11 |
| Silent mode | No |
| Temp range | -40 °C to 85 °C |
| Timestamp Resolution (µs) | 100 µs |
| Weight | 185 g |
