Description

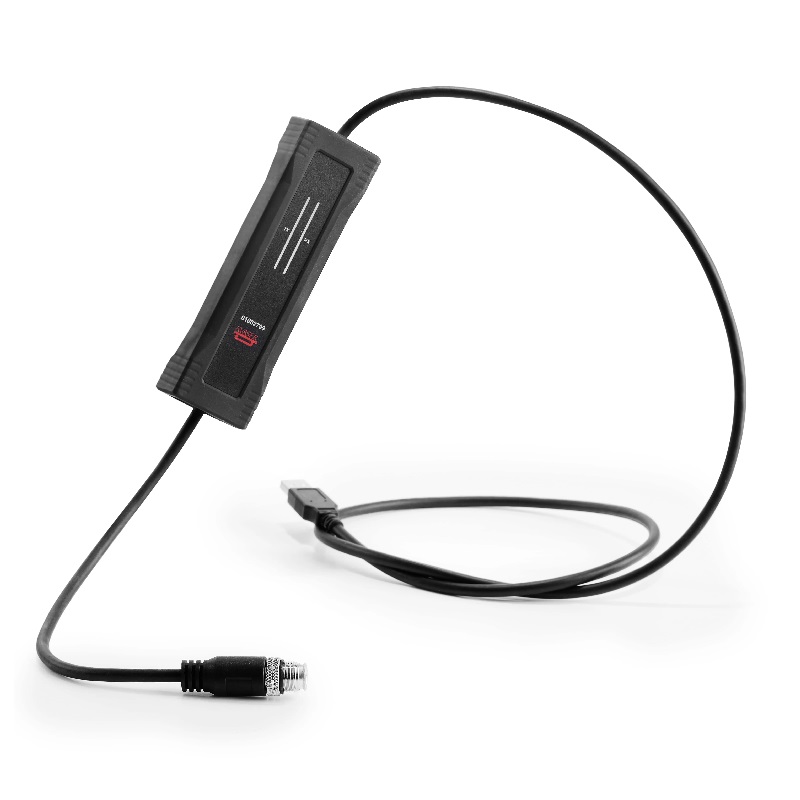

The Kvaser U100P-X2 is a robust, single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation that squarely addresses the needs of the evolving automotive development market. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this is the first in a new range of interfaces that is also suited to rugged applications in marine, industrial, heavy duty vehicle and heavy industries.
The Kvaser U100P is also available with 9-pin D-SUB, J1939 or OBD-II CAN connectors.
Major features
- USB CAN interface.
- Powered through the USB connector.
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Lightweight robust housing made of glass fibre reinforced polyamide overmolded with TPE.
- Intuitive LED UI.
- Reinforced Galvanic Isolation, 5000VAC rms applied for 60 seconds.
- Industrial grade temperature range, -40 to +85 °C.
- 20 000 msg/s, each timestamped with a resolution of 1 μs.
- Kvaser MagiSync – automatic time synchronization (see Section 3.3, Kvaser MagiSync, on Page 8 for more details).
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Support for SocketCAN.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- IP67 rated housing.
Technical Specification
| Bitrate | 10 - 1000kbps |
|---|---|
| CAN FD Bitrate | Up to 8 Mbit/s |
| Categories | Interfaces, Hardware, CAN |
| Certificates | CE, RoHS |
| Channels | 1 |

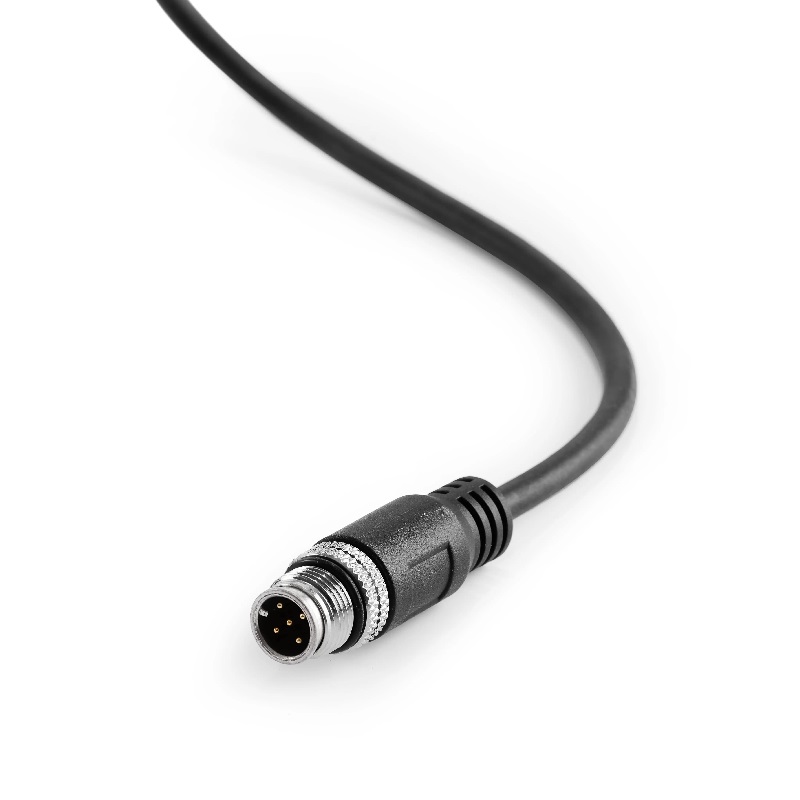

| Connectors | M12 5 pin |
| Error Counters Reading | No |
| Error Frame Generation | Yes |
| Galvanic Isolation | Yes |
| Height | 26 mm |
| Interfaces | USB |
| Length | 128 mm |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| OS | Linux, Win 7, Win 10, Win 8, Win 11 |
| Silent mode | Yes |
| Temp range | -40 °C to 85 °C |
| Timestamp Resolution (µs) | 1 µs |
| Weight | 160 g |
