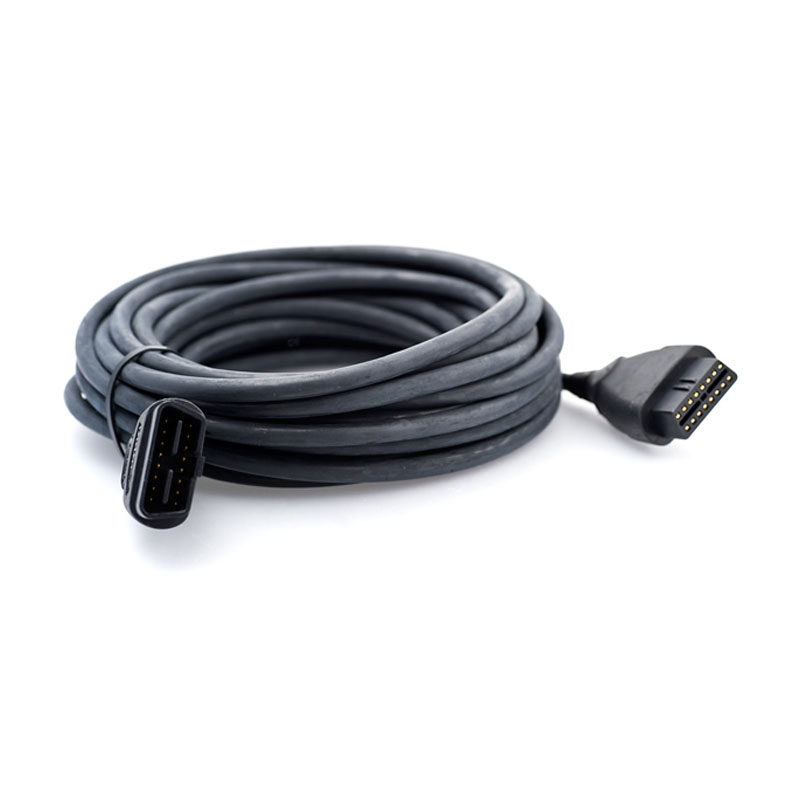

Kvaser OBD II Extension Cable 10m
Part No.: MPKV-OBD-II-Extension-Cable-10m
10 metres in length with male to female OBD II connectors
產品介紹
Kvaser's OBD II Extension Cable is a highly durable extension cable of 10 metres in length with male to female OBD II connectors. The cable is made of high quality thermoplastic rubber to ensure excellent flexibility and resilience. All pins are connected.
Major Features

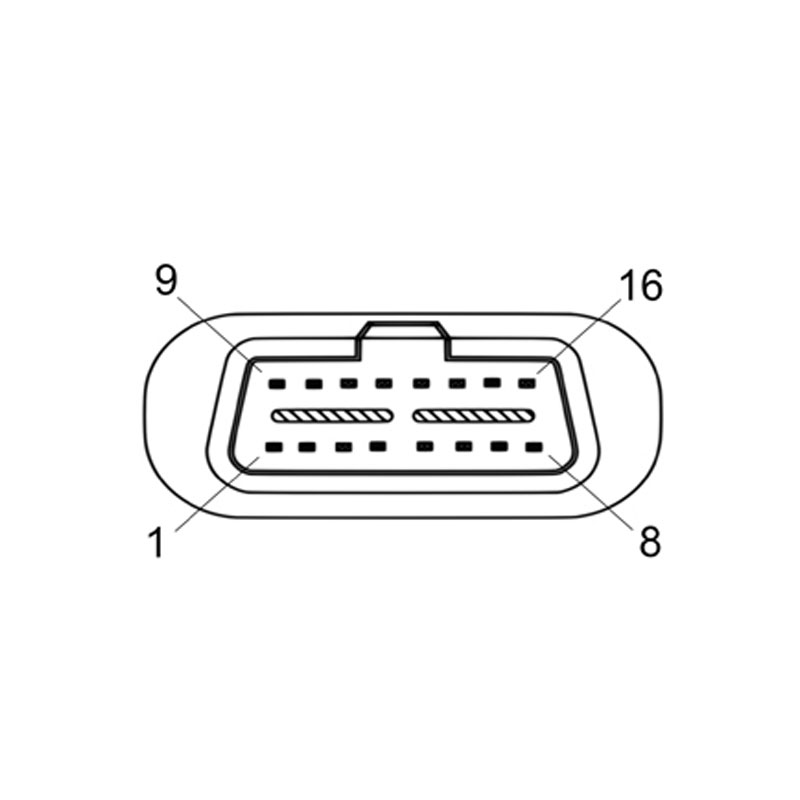

- Molded (SAE J1962) male connector, Type B (24 Volt)
- OBD II Molded OBD II (SAE J1962) female connector, Type B (24 Volt)
- Made of durable thermoplastic rubber
- Gold plated pins on OBDII connectors for extra reliable contact
- Termination is built in with a 120 Ohm terminating resistor
- Available in other cable lengths
- RoHS compliant
- This cable can save wear and tear on your CAN interface's OBD2 connector
Specifications
| Channels | 1 |
|---|---|
| Operating System | Linux, Win Vista, Win 10, Win 8, Win 7, Win XP |
| PC Interface | Cable |
| Casing Mathrial | Durable thermoplastic rubber |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Galvanic Isolation | No |
| Silent Mode | No |
| Certificates | CE, RoHS |
| Length | 10000 mm |
| Weight | 1000 g |
| Temperature Range | -30 ~ 85 °C |
