Description

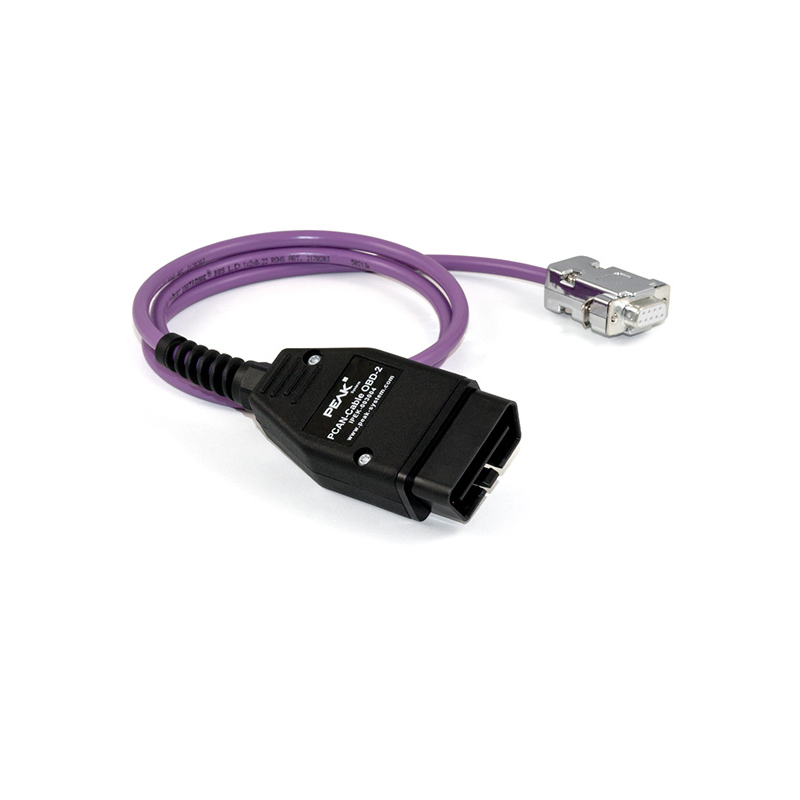

Many modern motor vehicles have an OBD-2 interface for connecting various diagnostics and testing tools. This adapter cable can be used to access the contained CAN lines.


Specifications

• 9-pin D-Sub socket (in accordance with CiA® 106)
• OBD-2 connector – assigned for CAN only on:
• Pin 6: CAN-High (J-2284)
• Pin 14: CAN-Low (J-2284)
• Length 1.0 m
• Without termination resistors
• All ODB-2 pins are mounted in the plug and can be assigned as desired

Product Includes...

1. PCAN-Cable OBD-2
