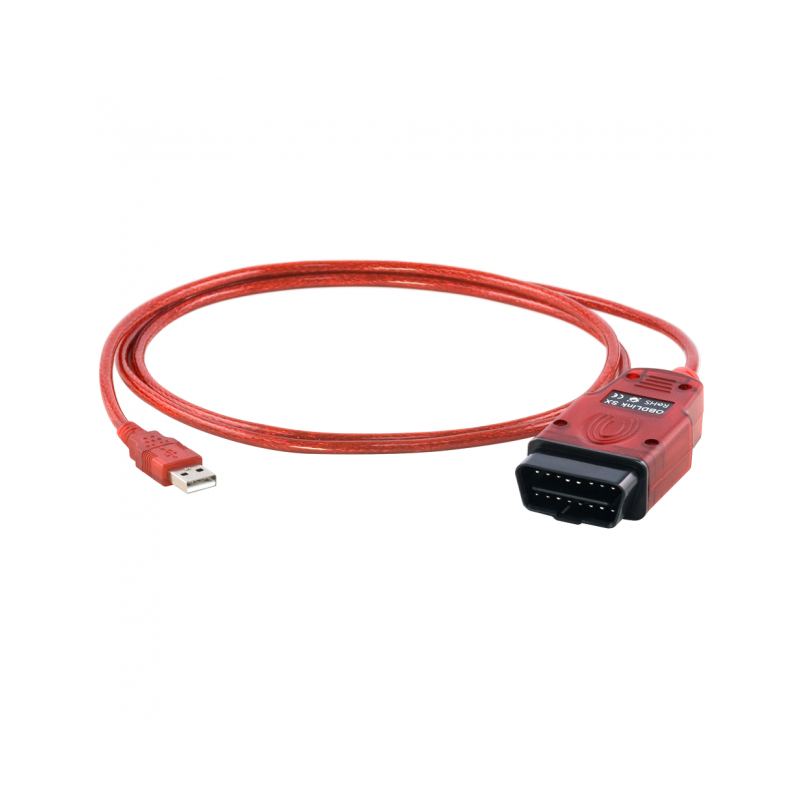

OBDLink SX Scan Tool

Part No.: MPST-OBDLink-SX
Quickly and accurately diagnoses engine problems & accesses performance parameters for all OBD-II compliant vehicles (except hybrid or electric vehicles).

產品介紹

OBDLink® SX is the perfect entry level scan tool designed for the do-it-yourself mechanic. It is packed with advanced features normally found in more expensive scan tools. Includes license key for the latest OBDWiz diagnostic software. USB interface.

OBDLink® SX quickly and accurately diagnoses engine problems and accesses performance parameters for all OBD-II compliant vehicles (except hybrid or electric vehicles). Use the included OBDwiz software on any Windows laptop, netbook, or PC and you have a sophisticated, easy-to-use diagnostic system.

OBDwiz, included with OBDLink® SX, allows you to:
  • Turn off the check engine light, and erase stored diagnostic information
  • Read and erase stored, pending, and permanent trouble codes (both generic and manufacturer-specific)
  • Access freeze frame information
  • Display, graph, and log 90+ real-time parameters
  • Create custom digital dashboards
  • Measure and display fuel economy
  • And much more!
Premium diagnostic software, such as ScanXL and ScanMaster, offers a myriad of additional features including Dynometer, multi-language support, and data manipulation tools. ScanXL's Enhanced Diagnostics Add-ons offer support for thousands of enhanced manufacturer-specific parameters, as well as ABS and other proprietary systems.

Key Features

  • Plug-and-play design
  • Maximum vehicle coverage (Verify your vehicle is OBD-II compliant)
  • Fastest USB OBD adapter
  • More 3rd party software options
  • Free firmware updates
  • Smart, keep-alive algorithm
  • Large CAN memory buffer

Specifications



INTERFACE USB Port
DEVICE WEIGHT 3.4 oz (96.4 g)
DIMENSIONS 3.5 L x 1.78 W in (88.9 x 45.2 mm)
SUPPORTS ALL OBD-II PROTOCOLS Yes
SUPPORTS SINGLE-WIRE CAN (GMLAN) No
SUPPORTS FORD MEDIUM-SPEED CAN (MS-CAN) No
USB SPECIFICATIONS
  • USB 2.0
  • Compatible with Windows Vista or higher
OPERATING CURRENT 8 mA
BATTERYSAVER™ MODE < 1 mA
OPERATING VOLTAGE 8-18V DC
OPERATING TEMPERATURE -4º to 131º F (-20º to 55º C)
OPERATING HUMIDITY 10 to 85% (non-condensing)
MAXIMUM PARAMETER ID (PID) RATE ~200 PIDs/second
PACKAGE CONTENTS
  • OBDLink® SX adapter
  • Quick Start Guide
  • License key for OBDwiz software


Protocols

  • Legislated OBD-II protocols:
    • ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)
    • ISO 14230-4 (Keyword Protocol 2000)
    • ISO 9141-2 (Asian, European, Chrysler)
    • J1850 VPW (GM)
    • J1850 PWM (Ford)

Compatible Devices



Windows

  • PCs, Laptops, Tablets, & Netbooks (Windows Vista and newer) with USB connection

Android*

  • Smartphones & Tablets (Android 3.1 and newer)

Apple/iOS

  • Not supported

*Device must be using Android 3.1 or higher and support USB host mode. A USB OTG (“On the Go”) cable is required to connect OBDLink® SX (not included with purchase). Before purchasing SX for use with an Android, make sure phone or tablet meets these requirements.
