Features

• Supports 802.11b/g/n

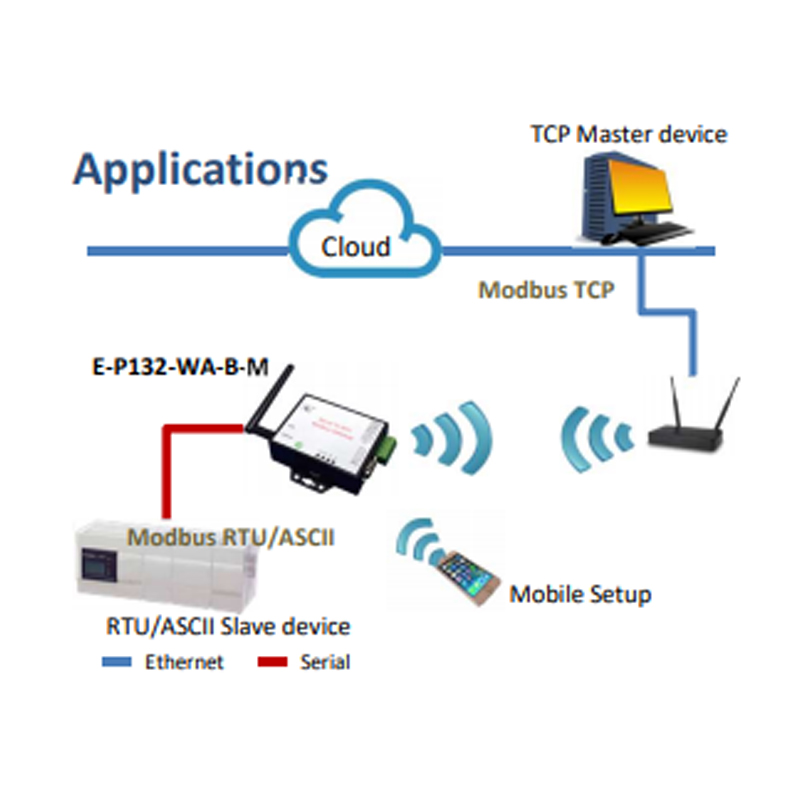

• 4 Modbus modes selectable
• TCP Master to RTU/ASCII Slave
• RTU/ACSII Master to TCP Slave
• Support 8 TCP Masters simultaneously
• Serial Master access to 8 TCP Slaves
• Web Browser Configuration
• Easy Wireless setup by Mobile Phone
• On line F/W upgrade

Specifications

Hardware

• CPU: ARM-9 CPU Linux OS, 200 MHz,
• RAM: 32MB Internal SRAM
• ROM: 64M Bits Flash ROM
• Watchdog: Built in H/W Watchdog timer

WLAN

• Standard: 802.11b/g/n
• Data Rate: 11/54/72.2 Mbps @ 20Mhz Band Width
• Modulation: DSSS; OFDM
• Frequency: 2.4GHz
• Tx Power 11b: Max. 19dBm
• Tx Power 11g/n: Max. 16dBm
• Rx Sensitivity: -73dBm @ 54Mbps; -86dBm @ 11Mbps
• Tx Rate: Max. 54Mbps with auto fallback
• Tx Distance: Up to 100m
• Security : WEP 64-bit / 128-bit data encryption, AES, WPA / WPA2 personal, WPS2.0, WAPI
• Antenna: 2 dBi RP-SMA connector
• Network Mode Infrastructure; Ad-Hoc; Soft AP (Setup)
• Mode: TCP Server / TCP Client / UDP / Virtual Com Pairing
• Setup: HTTP Browser Setup (IE, Chrome, Firefox)
• Security: Login Password

Serial Interface

• Port number: 1
• Port Type: RS-232 or RS-422/485 software selectable
• Connector: Male DB9 / 7-pin Terminal Block
• Speed: 110 bps ~ 115.2 Kbps
• Parity: None , Odd , Even , Mark , Space
• Data Bit: 5, 6 , 7 , 8
• Stop Bit: 1 , 1.5, 2
• Built–in: RTC
• Protection: 422/485 Surge & Over Current Protection
• Built in 15KV ESD protection for all signals

Regulatory Approval

• FCC: Part15 Class A
• CE: EN55022 Class A, EN55024
• RoHS: Compliance

Warranty

• 1 Year

Environment

• Temperature:
  • Operating: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage: -20°C ~ 70°C (-4°F ~ 158°F)
• Humidity:
  • Operating: 10% ~ 95% non-condensing
  • Storage: 5% ~ 95% non-condensing

Software Features

• Modbus, 4 Modes:  TCP Master to RTU Slave / ASCII Slave, RTU Master / ASCII Master to TCP Slave Selectable through Web Browser
• TCP Master: Up to 8 simultaneous TCP Master
• Serial Master: Access to 8 TCP Slaves simultaneously
• OS Supported: Win 2000/2003/XP/Vista/Win 7/Win 8
• Configuration: Window Utility, Web Browser

Power

• Input: DC 9 ~24V, 200mA@ 12VDC
